Specificatii :

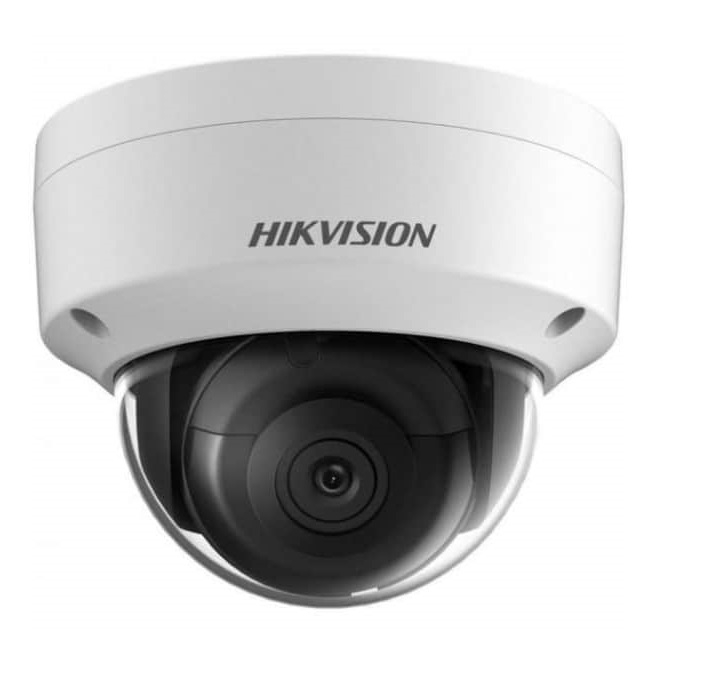

5 MegaPixel dome TVI IR UltraHD 1440p rezolutie 2560×1944 pixeli 20 fps 4 IN 1 camera
•iluminator IR EXIR 2.0 automat 30 metri cu optimizare IRCut Day&Night;Smart IR;
•obiectiv fix 2.8mm ( 98°grade deschidere) ; StarLight Color: 0.003 Lux@(F1.2, AGC ON) UltraLowLight
• Digital noise reduction, Mirror, SMART IR; 130dB TrueWide Dynamic Range
• utilizare interior/exterior grad de protectie la intemperii IP67; carcasa metalica, antivandal IK10; 4 privacy mask;
• cablare cu cablu coaxial pana la 500 metri si conectori BNC;
• temperaturi de utilizare -40C pana la +60C,
• alimentare 12Vcc/1A; 1 iesire BNC HD; buton switch TVI/AHD/CVI/CVBS (4 IN 1 camera)
• dimensiuni: Ø 111 mm × 82.4 mm, 0.35kg; doza DS-1280ZJ-DM18, suport perete DS-1258ZJ; pendant mount: DS-1271ZJ-110; vertical pole mount DS-1275ZJ-SUS
•functioneaza impreuna cu DVR-uri HIKVISION TurboHD 3.0 DS-72xyHUHI-K, HTHI si DVR-uri HDCVI/AHD/analogice

Image Sensor:		5 megapixel progressive scan CMOS
Signal System:		PAL/NTSC
Effective Pixels:		2560 (H) × 1944 (V)
Min. Illumination:		Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8 mm, 3.6 mm, 6 mm fixed lens
Lens Mount:		M12
Adjustment Range:		Pan: 0° to 355°; Tilt:0° to 75°; Rotate: 0° to 355°
Video Frame Rate:		TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps;CVI: 4 MP@25fps, 4 MP@30fps;CVBS: PAL, NTSC
Synchronization:		Internal Synchronization

Menu
3D DNR (Digital Noise Reduction):		Level 1 to 9
White Balance:		Auto / Manual
BLC:		Support
AGC:		Support
WDR:		Yes



GeneralOperating Conditions:-40 °C – 60 °C (-40 °F – 140 °F)
Humidity 90% or less (non-condensing)Power Supply:12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.Impact Protection:IK10.Weather Proof:IP67IR Range:Up to 30mCommunication :Up the coax
Protocol: HIKVISION-C(Coaxitron)Dimension:Ø 111 mm × 82.4 mm (Ø 4.4″ × 3.2″ )Weight:Approx.500 g (1.10 lb.)
